Advantages of Modular Powder Coating Lines

Modular powder coating lines offer a smart way to set up a coating section with future growth in mind. Built from standardized modules, they can be fully customized to meet specific production needs. Modular architecture reduces costs and simplifies upgrades as coating volumes increase.

The philosophy of modularity runs through every aspect of EUROIMPIANTI powder coating lines. The modular approach is reflected at all levels — in the entire lines as systems and in each of their functional elements:

• Every line is made up of modules — individual functional elements such as conveyors, surface treatment tunnels, drying and curing ovens, spray booths, recovery systems...
• Each element of the line is, in turn, also assembled from standardized modules, forming components with the required functions and specified technical characteristics.



Coating Line as a Construction Set

Coating lines are assembled like a construction set — from modules. All functional units consist of standardized components that connect perfectly and operate together as a unified system.

EUROIMPIANTI lines are assembled entirely with bolted joints — no welding is used during installation. This makes assembly and disassembly quick and easy, allowing for upgrades and relocation to new facilities.

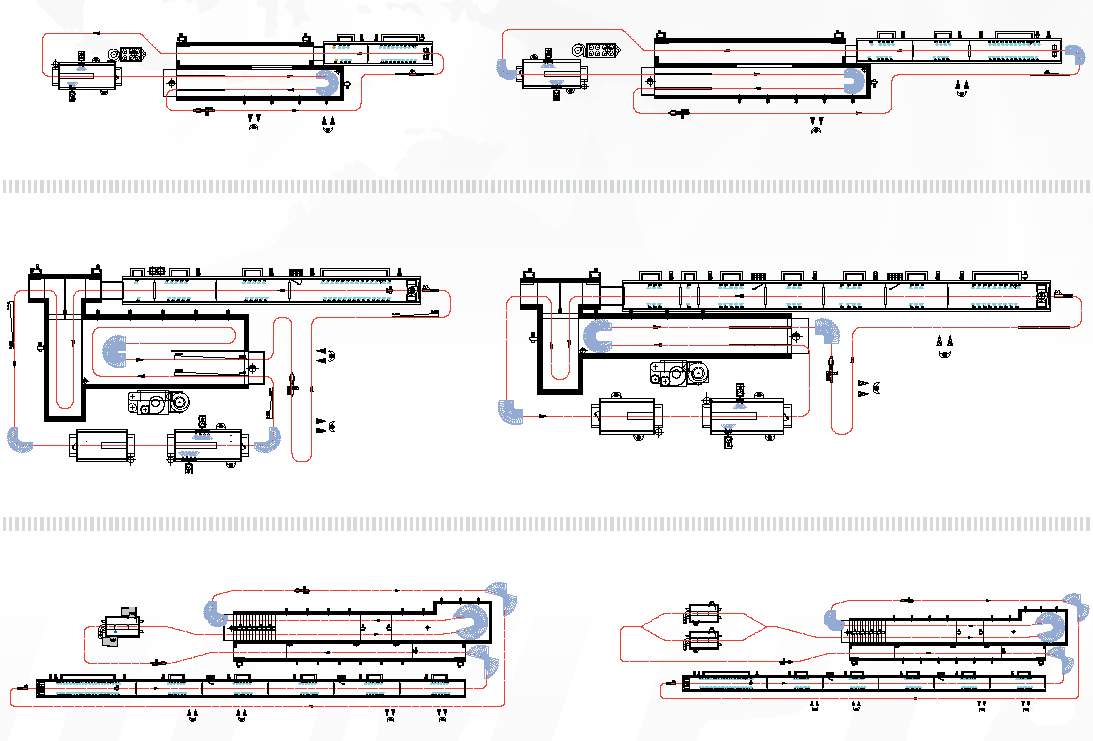

During configuration, the modules form complete technological chains tailored to the specific requirements of each production process. Thanks to standardization and full compatibility, the system can be arranged in countless line configurations:

In every case, the layout of the powder coating line is customized to meet the specific production goals and ensure the most efficient powder coating technology.



Customized Solutions at Lower Cost

Tailored solutions. The modular design makes it possible to individualize standard solutions and adapt them to any technical requirements, including installation within facilities of various shapes and layouts.

Affordable pricing. The modular approach simplifies production and reduces the costs of designing and manufacturing components. A wide range of combinable modules allows for virtually unlimited configuration options.

Thanks to the serial production of standardized modules, even fully customized EUROIMPIANTI lines remain relatively low in cost.

Space-saving layout. Our lines are engineered for ultra-compact module arrangement while fully complying with all technical regulations. This minimizes floor space and shortens the overall coating cycle time.

Modernization and Productivity Increase

Upgrade potential. The modular architecture of EUROIMPIANTI lines allows for system upgrades even after years of operation. Throughout the entire service life, technical capabilities can be expanded by adding new modules and functional units.

For example, it’s possible to increase line throughput, adjust the surface preparation cycle, reconfigure modules, or integrate additional equipment to automate the process and use resources more efficiently.

Note: If the manufacturer uses welding during assembly, then modernization becomes significantly more complex and expensive. Relocating such a line to a new facility is often unfeasible.

Equipment modernization. Standardization ensures high interchangeability of components and assemblies. This enables upgrading outdated equipment to the level of modern high-tech systems.

Step-by-step productivity growth. As production volumes increase, line performance can be scaled up by extending active zones and increasing conveyor speed. Example of a step-by-step modernization to double productivity:

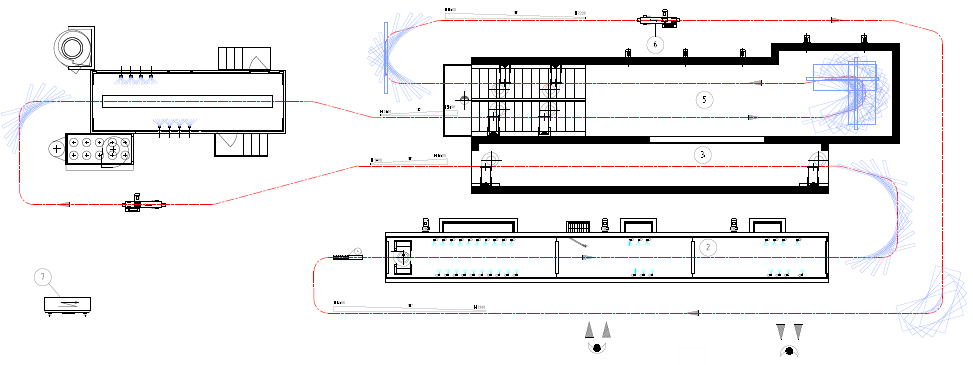

Stage I
Base line with a conveyor speed of 1 m/min.

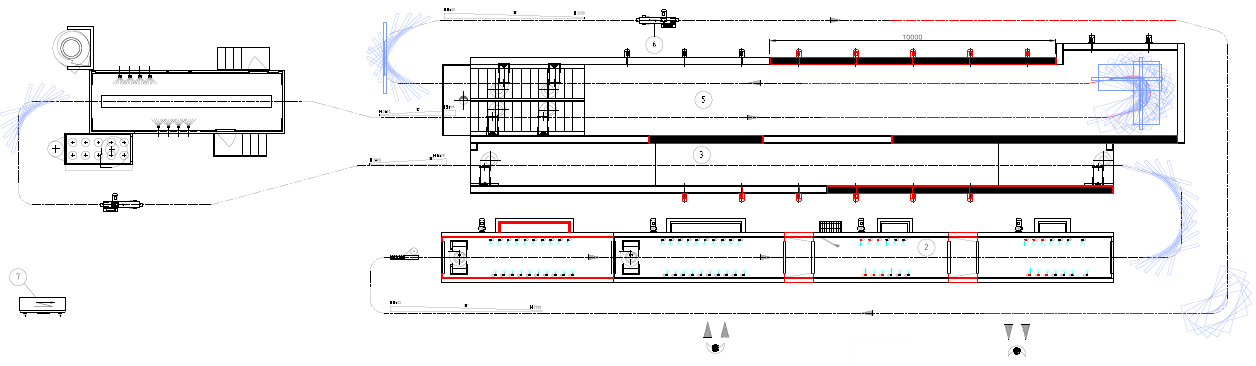

Stage II
Upgraded line with increased conveyor speed of 2 m/min.

Low-cost modernization. To meet growing production demands, doubling the line’s productivity is far more cost-effective than purchasing a new powder coating line.

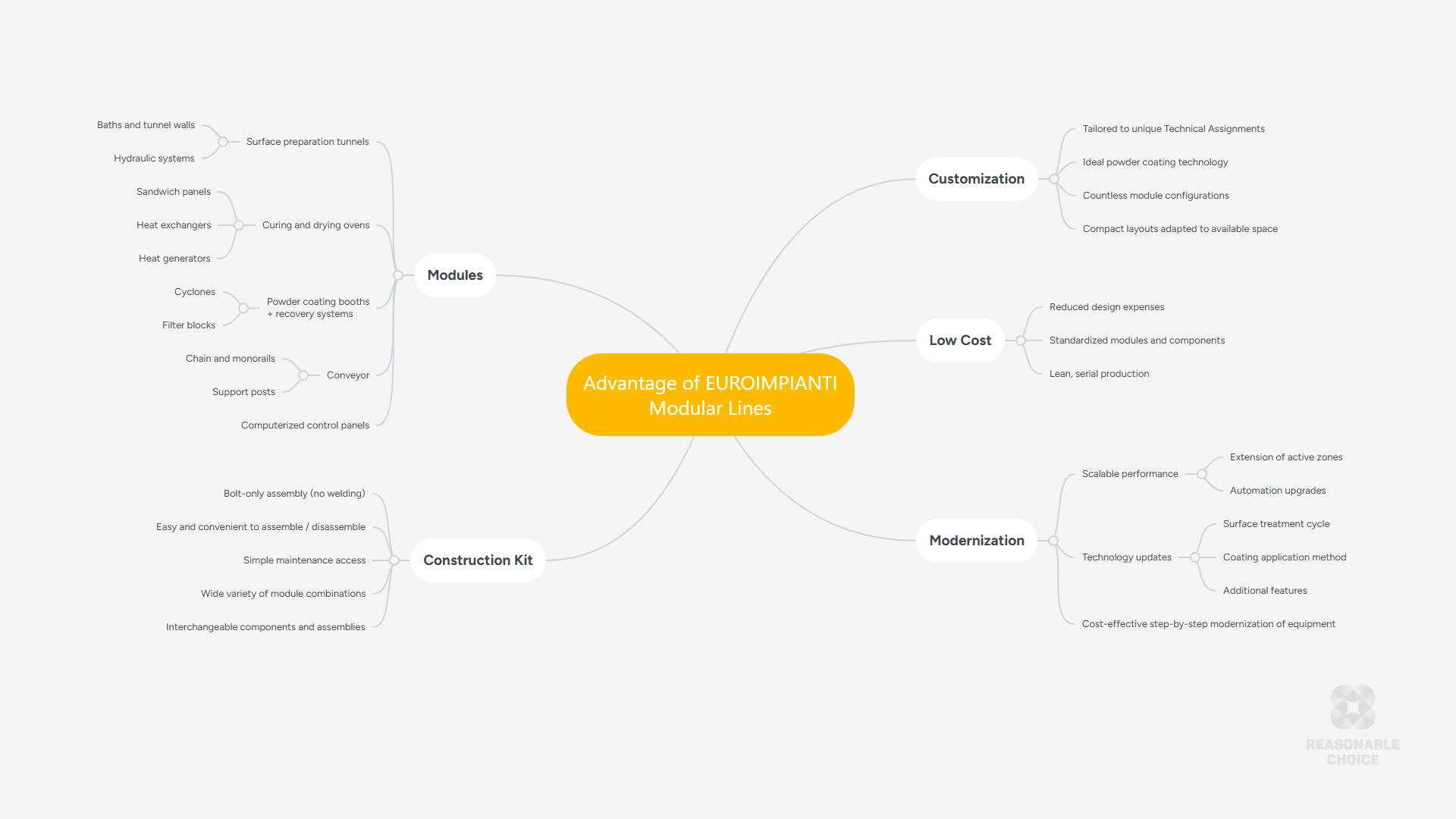

Advantage of EUROIMPIANTI Modular Lines

The modular architecture enables the design of unique, customized powder coating lines with varying levels of functional complexity — tailored to specific technological requirements and available production space.

"We mass-produce standardized components that assemble into functional coating systems, optimized for each customer’s production needs."

Gianluca Baruffaldi
CEO, EUROIMPIANTI Srl

Key advantages of the modular design:

• Relatively low cost of both complete lines and individual modules;
• Customization in designing unique production lines;
• Ergonomics and quick bolt-mounted assembly / disassembly;
• Modernization potential and scalable productivity.

EUROIMPIANTI industrial lines are built to grow and expand, making them ideal for dynamic, scaling businesses. Thanks to their modularity and upgrade potential, these lines are a reasonable investment with the future in mind.
